Samsung brings its consumer electronics engineering to home comfort with the Wind-Free ductless lineup. Digital Inverter compressors, R-32 refrigerant, and Wind-Free cooling technology combine for quiet, precise, and energy-efficient single-zone comfort - ideal for additions, converted spaces, and room-by-room climate control.
What's Included:
-

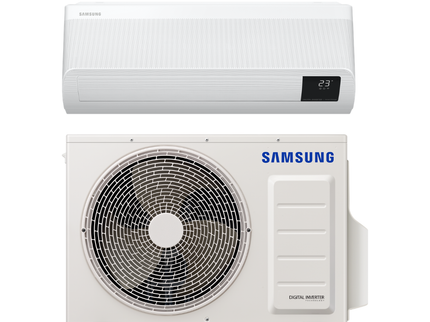

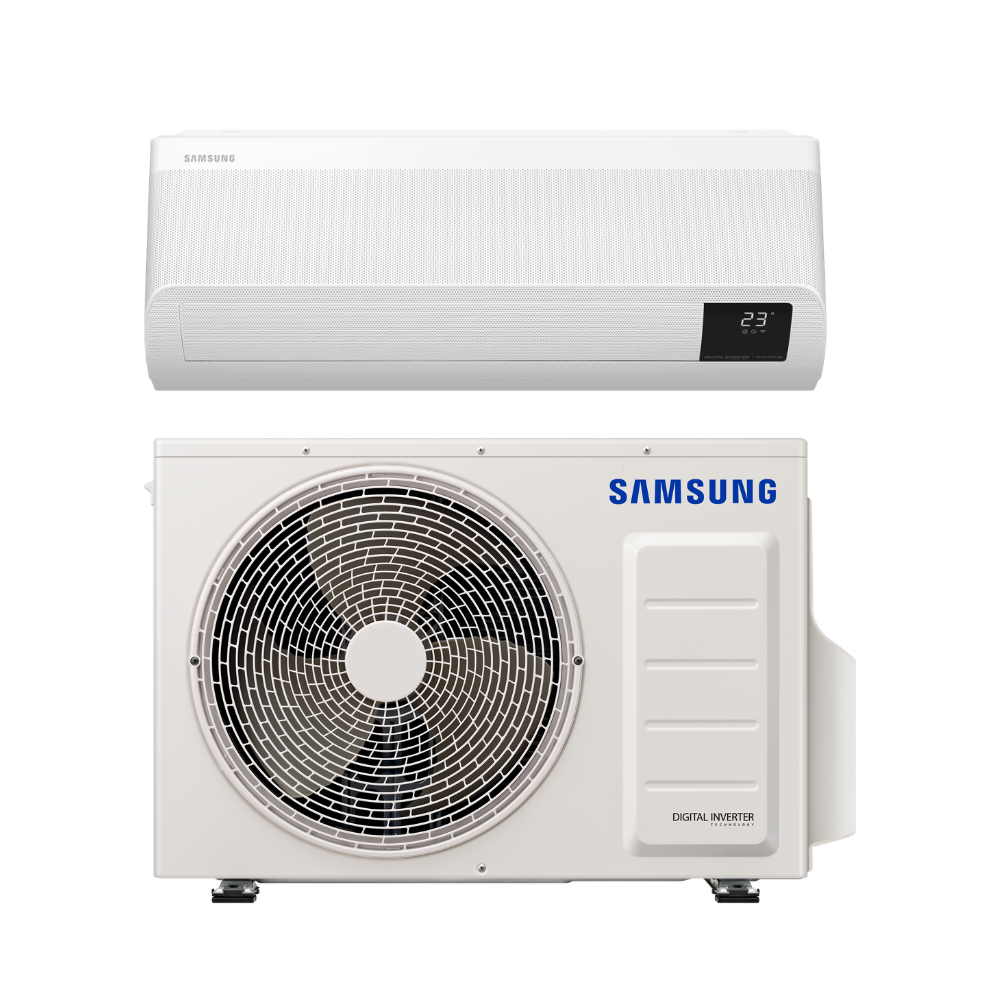

Samsung Wind-Free Outdoor Unit (RXX12AMD): Digital Inverter compressor delivering up to 24 SEER2, engineered for R-32 refrigerant and quiet outdoor operation.
-
Samsung Wind-Free Indoor Wall Unit (RNX12AMD): Wall-mounted indoor unit with Wind-Free cooling mode for draft-free comfort through thousands of micro air holes.
Includes licensed and insured HVAC installation by professionals, along with the Install Kit for a complete setup.
Professional Installation:
- Removal & haul-off of existing equipment (if applicable)
- Mounting of indoor wall unit and outdoor condenser
- Line set installation, vacuum evacuation & refrigerant charge to OEM spec
- Electrical whip & disconnect installation
- Condensate drain routing
- Full system start-up and operational testing
- Performed by a licensed, insured HVAC contractor
Ductless Install Kit
-
Electrical & mounting disconnect, whip, outdoor mounting bracket/pad
-
Refrigerant line set 1/4" liquid / 3/8" gas, insulated
-
Drainage condensate drain line and fittings
Not Included
This listing covers the equipment and standard installation scope above. The following items are not included unless specifically listed on your written invoice or estimate:
-
Electrical panel upgrades or new breakers beyond the standard disconnect
-
Ductwork modifications, repairs, swap, or new runs
-
New refrigerant line set (existing line set is reused when in good condition)
-
Condenser pad re-pour, raised platform, or hurricane tie-downs (standard composite pad is included)
-
Condenser relocation to a new exterior position
-
Crane or rooftop rigging for difficult equipment access
-
Thermostat upgrades (basic thermostat reuse only)
-
Asbestos abatement, mold remediation, or hazardous material handling
-
Carpentry, drywall, paint, or flooring repair after installation
If any of the above are needed for your home, our technician will assess on-site and provide a written change-order quote before any additional work begins. Nothing extra is charged or performed without your written approval.
5-Year Labor Warranty
Labor is covered for 5 years from the date of installation. If a covered defect related to our installation causes a failure, we return at no charge for diagnosis and labor. Parts replacements are handled under the OEM parts warranty. Excludes maintenance, filter changes, customer-caused damage, and acts of nature. Full terms on the Warranty & Guarantee page.
| Capacity (BTU) |
12000 |
| Tonnage |
1-Ton |
| Cooling Efficiency (SEER2) |
24 |
| Mount Type |
Wall Mount |
| Refrigerant |
R32 |
| Outdoor Unit Model |
RXX12AMD |
| Indoor Unit Model |
RNX12AMD |
| Liquid Line |
1/4" |
| Gas Line |
3/8" |
| Voltage |
208/230V |
| AHRI Certified Reference # |
215399297 |
| Warranty |
10 Year Parts / 10 Year Compressor (When Registered with OEM) |
